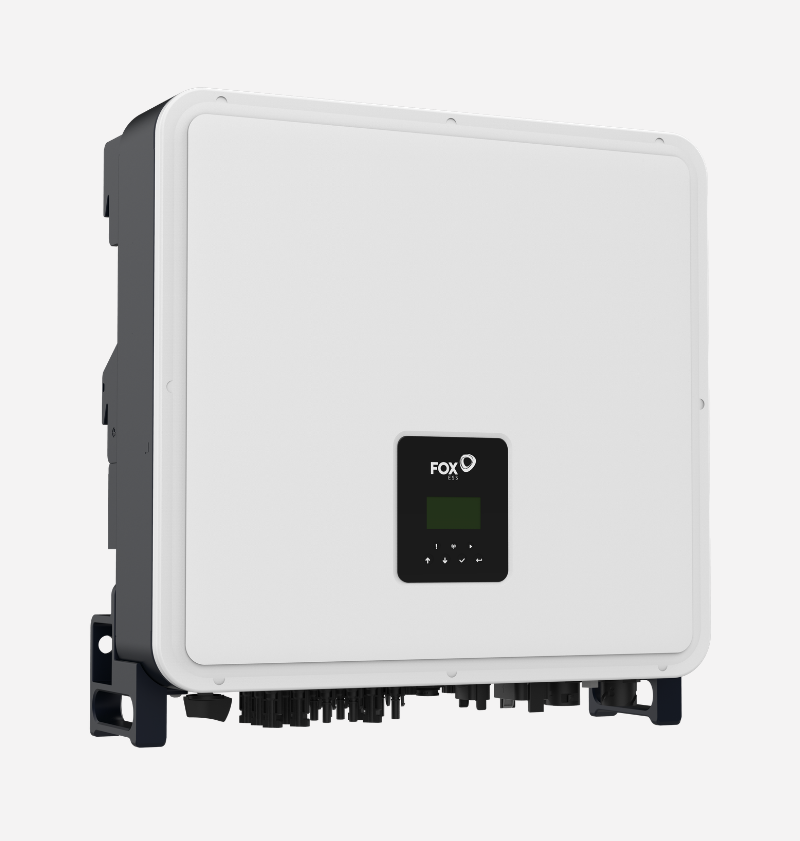

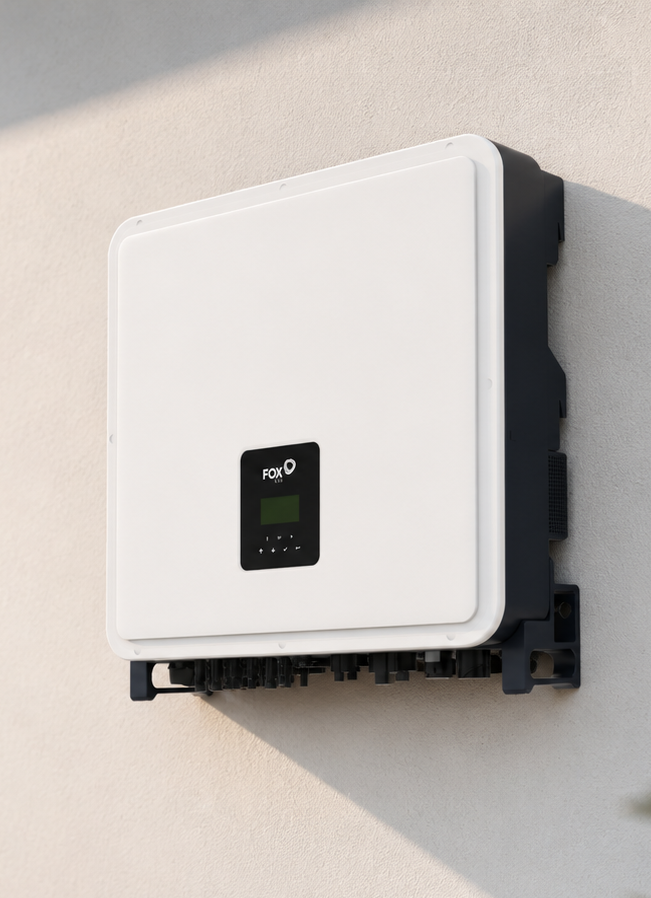

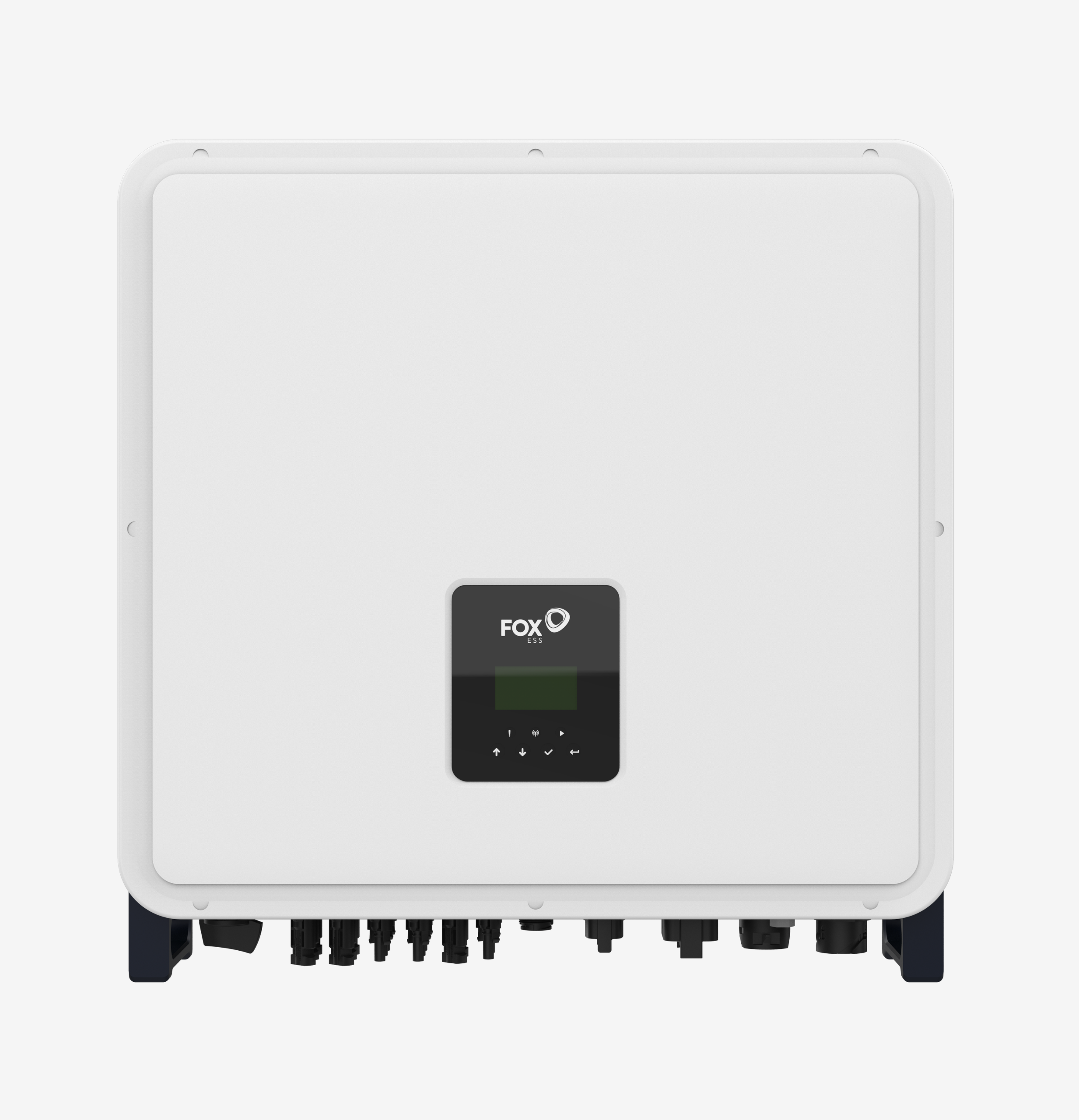

The H3 Pro is a three-phase hybrid inverter and AC charger, available in 15–30kW models and designed for high-demand sites. It combines robust three-phase power with advanced control features, while supporting scalable storage when paired with compatible Fox ESS high-voltage batteries.
The inverter can be installed with EP Series or EQ/CQ Series batteries, or without batteries as a grid-tied, battery-ready inverter. With 2 battery inputs, battery capacity can be scaled to over 168kWh per inverter (with CQ7), with further scaling possible by installing inverters in parallel and adding batteries to each inverter.
*Requires AI Link.
The H3 Pro is available in 15–30kW models, giving installers three-phase hybrid inverter and AC charger options for high-demand sites.
Available in 15, 20, 25, and 30kW model options, with 3 x MPPT, 2 strings per MPPT, 160V start-up, EPS function and 2 battery inputs.
Pair with compatible Fox ESS high-voltage batteries, including EP and EQ/CQ Series options. The inverter can also be installed without batteries as a grid-tied, battery-ready inverter.
The H3 Pro can be installed with compatible high-voltage batteries, or without batteries as a grid-tied, battery-ready inverter. Storage capacity depends on the selected battery range: EP Series systems can range from 5.76kWh to 92.16kWh, while EQ/CQ Series systems can range from 8.64kWh to 168.48kWh.
The EP Series can be paired with the H3 Pro to create a high-voltage battery system. Available H3 Pro battery options include EP5, EP6, EP11 and EP12. Up to 4 EP batteries can be installed in parallel, with battery models not mixed. The smallest system is 1 x EP6 at 5.18kWh, while the largest system is 8 x EP12 at 92.16kWh.
The EQ/CQ7 Series can be paired with the H3 Pro to create a modular, stackable high-voltage battery system. Available H3 Pro battery options include EQ2900, EQ4300, EQ4800, EQ5000 and CQ7. With 2 battery inputs available on the H3 Pro, capacity can range from 3 x EQ2900 at 8.64kWh to 24 x CQ7 at 168.48kWh.
| Battery Model | Minimum # Batteries | Maximum # Batteries | Capacity range |
| EQ2900 | 3 (1 x EQM, 2 x EQS) | 14 (2 x EQM, 12 x EQS) | 8.64 – 40.32kWh |
| EQ4300 | 3 (1 x EQM, 2 x EQS) | 14 (2 x EQM, 12 x EQS) | 12.42 – 57.96kWh |
| EQ4800 | 3 (1 x EQM, 2 x EQS) | 18 (2 x EQM, 16 x EQS) | 13.98 – 83.88kWh |
| CQ7 | 4 (1 x CQM, 3 x CQS) | 24 (2 x CQM, 22 x CQS) | 28.08 – 168.48kWh |
| EP6 | 1 | 8 | 5.76 – 46.08kWh |
| EP12 | 1 | 8 | 11.52 – 92.16kWh |
*Requires AI Link
Fox Cloud is your online command centre — giving you full visibility and control over your energy system from anywhere. With a clean, intuitive interface, it allows you to monitor real-time performance, review historical data, and adjust settings to suit your lifestyle or energy tariff.
Whether you’re fine-tuning your charge/discharge schedule, checking your battery health, or tracking solar generation, Fox Cloud makes managing your system simple and smart. It’s available via web browser and syncs seamlessly with the Fox ESS app, so you’re always connected — whether at home or on the go.
Feature availability may vary depending on your device and app version.
Smart optimisation - forecasting solar, tracking tariffs, and automatically charging or discharging to cut costs, while also enabling participation in grid flexibility services.
Join a Virtual Power Plant that aggregates Fox systems to support the grid and unlock extra value through flexible energy services.
Kraken’s smart tariffs and automation intelligently control Fox batteries to maximise low-cost, low-carbon energy use.
A secure energy connectivity platform that links Fox systems with leading clean-tech apps for seamless optimisation and demand-response control.
